What are die casting electrical tools?

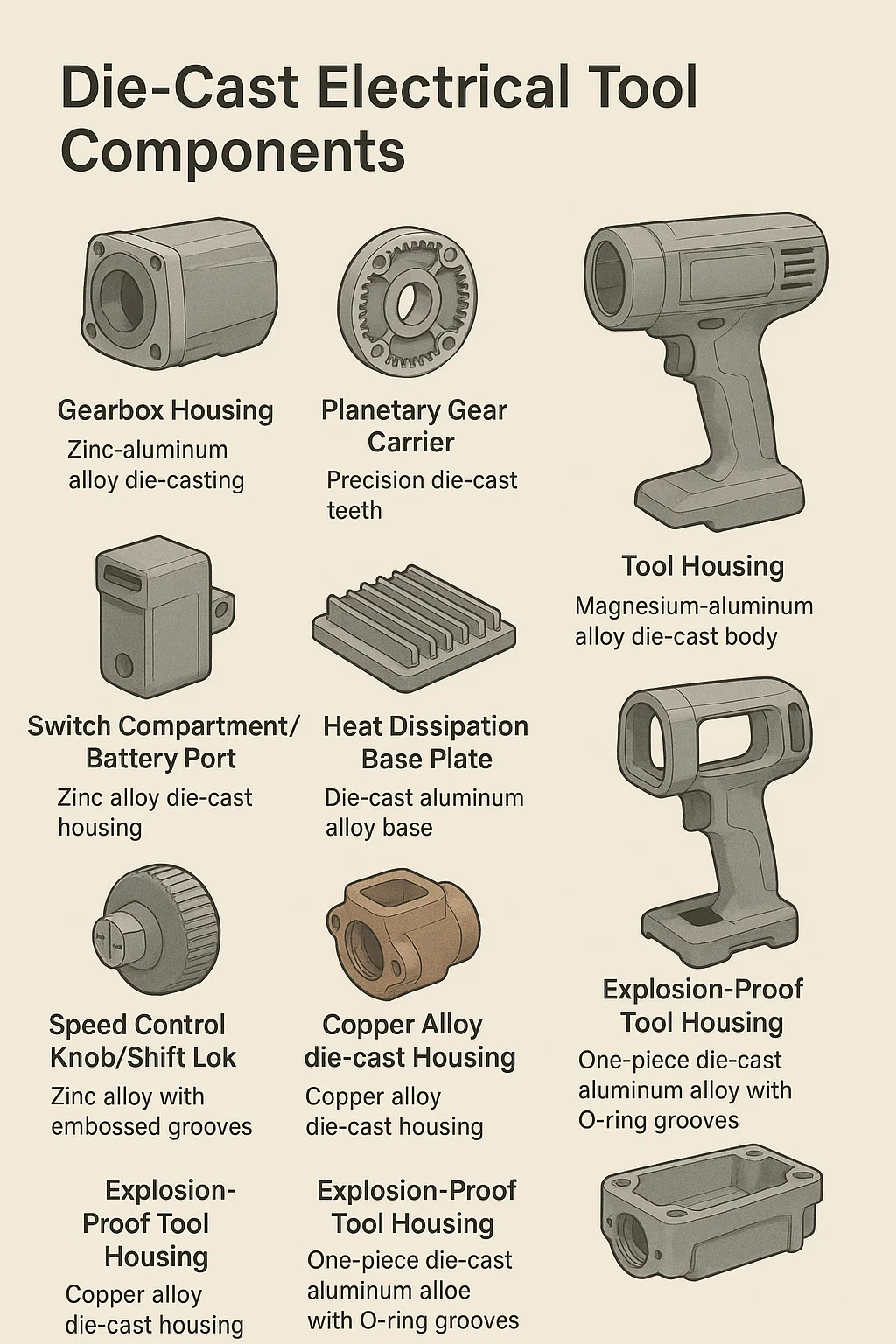

Detailed Explanation of Die-Cast Electrical Tool Components
Die-cast electrical tool components refer to core metal parts manufactured through a high-pressure casting process. They address key pain points of electrical tools, such as high impact, heat dissipation, and electrical safety. Key applications and features are as follows:

1. Electrical Transmission Core - Torque-Bearing Structure
Gearbox Housing:
Zinc-aluminum alloy die-casting replaces plastic, withstands high motor torque without cracking (e.g., the speed change mechanism of an electric drill or angle grinder).
Planetary Gear Carrier:
Precision die-cast teeth ensure meshing accuracy and prevent metal fatigue fracture (e.g., the electrical output of an impact drill).

2. Protection and Heat Dissipation System - A Shield of Reliability
Motor End Cover:
Aluminum alloy die-cast fin structure directly dissipates heat, preventing winding overheating and burnout (essential for brushless motors).
Tool Housing:
Magnesium-aluminum alloy die-cast body provides impact resistance (2-meter drop test) and shields electromagnetic interference.

3. Safety Control Module - The Electrical Protection Hub
Switch Compartment/Battery Port:
Flame-retardant zinc alloy die-cast housing prevents arcing (e.g., the charging contact base of lithium-ion tools). Heat Dissipation Base Plate:
Die-cast aluminum alloy directly supports the IGBT electrical module, integrating thermal conductivity and insulation (inverter hammer control board).

4. Ergonomic Components - Enhanced Operating Experience
Handle Frame:
Hollow die-cast magnesium alloy structure reduces weight by 30% and improves grip balance (holding the nail gun for two hours without soreness).
Speed ​​Control Knob/Shift Lock:
Zinc alloy with embossed anti-slip grooves and latches for one-handed operation (torque adjustment ring for electric wrenches).

5. Reinforced Components for Special Scenarios
Explosion-Proof Tool Housing:
Copper alloy die-cast housing prevents friction sparks during operation (for electric wrenches in oil fields).
Waterproof Sealing Structure:
One-piece die-cast aluminum alloy with O-ring grooves achieves IP67 protection (for outdoor chainsaw operation in the rain).
